Porcelain Station Post Insulator

Porcelain Station Post Insulator, an integral part of an electrical distribution system, is a ceramic structure used to support and insulate conductors from metal poles or towers. It prevents electrical leakage and provides mechanical support to the conductor, thereby ensuring the smooth functioning of the power system. Whether it is a high voltage transmission line or a low voltage distribution line, Porcelain Station Post Insulator is a crucial component that ensures uninterrupted power supply. In this article, we will explore the different aspects of Porcelain Station Post Insulator in detail to understand why it is a must-have product for any electrical distribution system.

Design and Construction:

The Porcelain Station Post Insulator is made of high-grade porcelain material that offers excellent insulation properties. It is designed to withstand extreme weather conditions, such as high temperatures, high humidity, and high wind speeds. The post insulator is constructed using multiple porcelain discs connected in series with a rod through their centers. The discs are designed to shed rainwater and prevent any accumulation or flow of water along the surface of the insulator, which might lead to a flashover or short circuit. The insulator's design ensures that the conductor is held tightly without any slippage or movement, thereby providing mechanical stability to the electrical network.

Features and Benefits:

The Porcelain Station Post Insulator offers several features and benefits that make it an ideal choice for any electrical distribution system. Firstly, it has high electrical insulation resistance and can withstand high voltage and current loads without breakdown, arcing, or any other damage. Secondly, the porcelain insulator is resistant to UV radiation, acid rain, and other environmental factors that can cause degradation of materials over time. This makes it an ideal choice for outdoor applications. Thirdly, the ceramic material used in the post insulator is non-flammable, which helps prevent the spread of fire in the event of a short circuit or flashover. Fourthly, the porcelain insulator has a long service life and requires minimal maintenance, thereby reducing the overall maintenance cost of the electrical network.

Applications:

Porcelain Station Post Insulator has versatile applications in electrical distribution systems. It is primarily used in overhead power transmission and distribution lines, where it is mounted on metal poles or towers to support the conductors. The post insulator is also used in substation equipment, such as switchgear and transformers, where it provides insulation for electrical contacts and connections. Furthermore, Porcelain Station Post Insulator is suitable for use in polluted environments, such as industrial zones or coastal areas, where it can withstand the effects of chemical pollutants, salt spray, and other corrosive agents.

Conclusion:

In conclusion, Porcelain Station Post Insulator is an essential component of any electrical distribution system. Its excellent insulation properties, mechanical stability, and resistance to environmental factors make it an ideal choice for overhead power transmission and distribution lines, as well as substation equipment. The post insulator's long service life and minimal maintenance requirements make it a cost-effective solution for any power network. As a manufacturer, we are committed to providing high-quality Porcelain Station Post Insulators that meet international standards and offer reliable performance in all conditions. Please do not hesitate to contact us for more information and inquiries.

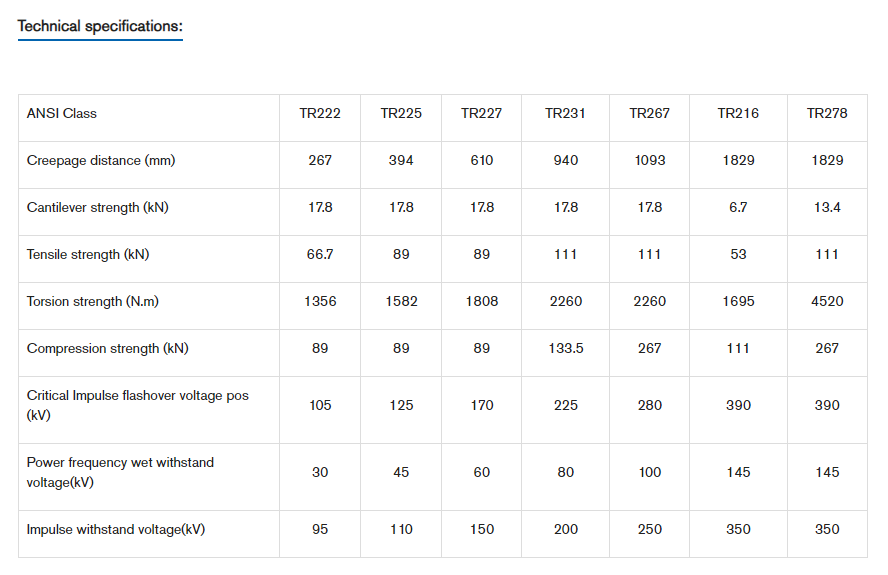

Name: porcelain station post insulator
Type: TR278 porcelain station post insulator
Related type: TR222, TR227, TR231,TR267
Standard: ANSI C29.9
Mechanical failing load: 6.7kN,13.4kN,17.8kN
Material: Alumina and silica porcelain
Application: Switchgear

The insulation performance of a porcelain station post insulator depends on the height,creepage distance, arcing distance. Porcelain station post insulator are the ideal choice for high voltage switches and substation bus support applications.
