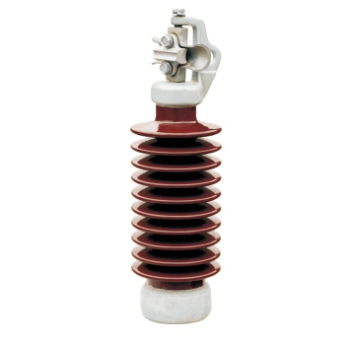

Vertical Line Post Insulator

Introduction:

As a manufacturer of high-quality electrical insulators, we understand the importance of offering reliable products for our customers worldwide. Our Vertical Line Post Insulator is one such product that has been designed to meet the rigorous demands of the electrical industry. This insulator is unlike anything that is currently available, with innovative features that set it apart from the competition. In this product introduction, we will outline the key advantages of our Vertical Line Post Insulator and explain how it can benefit merchants who work with us.

Advantages of our Vertical Line Post Insulator:

1. High-Quality Materials:

Our Vertical Line Post Insulator is made from high-quality materials, ensuring its durability and longevity. Our insulators are made from specially formulated grades of porcelain, which have been tested and proven to withstand the rigors of outdoor use. The material used in our insulators also provides excellent electrical insulation, which is essential for ensuring safe and reliable electricity transmission.

2. Innovative Design:

Our Vertical Line Post Insulator boasts an innovative design that sets it apart from the competition. The insulator features a unique shape that provides excellent mechanical strength, making it resistant to breakage even in adverse weather conditions. Additionally, each insulator comes equipped with an elastomeric seal that provides a superior moisture barrier, protecting the insulator from moisture and preventing electrical arcing.

3. Easy to Install:

Our Vertical Line Post Insulator is designed with ease of installation in mind. The insulator features a universal design that makes it compatible with a wide range of mounting hardware, including both ball and socket type mounts. Our insulators are also easy to install, with a simple design that requires no special tools or equipment.

4. Cost-Effective:

Our Vertical Line Post Insulator is a cost-effective solution for merchants looking to reduce their overhead costs. The insulator's innovative design makes it extremely durable, reducing the need for costly replacements and repairs. Additionally, our insulators are competitively priced, offering an affordable alternative to other options on the market.

Conclusion:

In conclusion, our Vertical Line Post Insulator is an innovative product that is designed to provide reliable electrical insulation in even the most adverse weather conditions. With its high-quality materials, innovative design, ease of installation, and cost-effectiveness, our insulator is the ideal choice for merchants looking to offer their customers a superior product. We are committed to providing the highest level of customer service and satisfaction, and we look forward to working with merchants worldwide to bring our product to a broader audience.

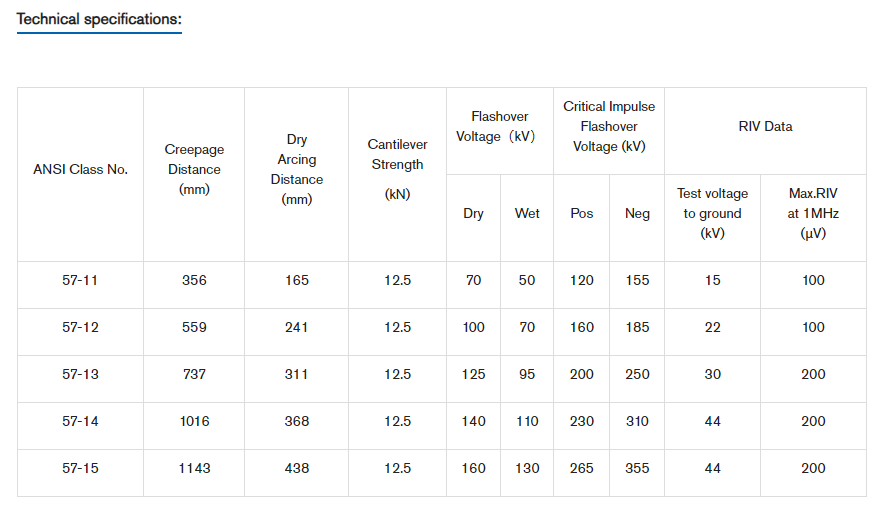

Product Information

Name: vertical line post insulator
Type: 57-14 vertical line post insulator
Related type: 57-11,57-12,57-13
Voltage Range: 11kV~66kV
Standard: ANSI C29.7
Graze colors of insulators: brown or light grey
Mechanical failing load: 10kN,12.5kN
Material: Alumina and silica porcelain
Application: Overhead lines and transmission lines

Product Introduction

The Vertical Line Post Insulator is made of a piece of porcelain or a composite material (silicone rubber). Due to its excellent mechanical properties, it is used in a wide range of different applications. And when used as a pulling post on power lines up to 69kV, it is fixed to the conductor by means of a pulling wire, thus replacing the traditional product. Secondly, in substations and related applications, our products protect transformers, switchgear and other related components that are subject to bending and compression forces during use.

Product Advantage

The Vertical Line Post Insulator is exposed to forces of compression, twisting and bending on a daily basis. Therefore, it must have high mechanical properties to overcome these forces, otherwise it will simply collapse and cost more to replace. Secondly, this product should have a reasonable creepage distance so as not to crisis the integrity of the path, which is shielded from tracking.
