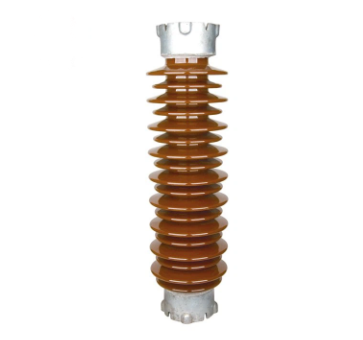

Solid Core Post Insulator

Solid Core Post Insulators are an essential component in electrical infrastructure, providing high voltage support to power transmission and distribution systems. They are used for applications ranging from power generation and transmission to industrial and commercial electrical systems.

Our Solid Core Post Insulators are manufactured to the highest standards and are designed to provide dependable performance and long service life. Our insulators are manufactured using high-quality materials and a rigorous manufacturing process, ensuring that they can withstand the most extreme conditions, including humidity, dust, and high-temperature environments that are common in many electrical applications.

Our Solid Core Post Insulators are designed with a unique geometric structure, providing superior electrical insulation properties compared to traditional ceramic or porcelain insulators. This makes them ideal for high-voltage applications, where electrical insulation is crucial to the overall safety and reliability of the system.

Our Solid Core Post Insulators are made using high-quality silicone rubber, which is known for its excellent electrical insulation properties and resistance to environmental conditions such as heat, cold, and UV light. This ensures that our insulators can withstand the test of time, providing long-lasting performance and reliability.

One of the unique features of our Solid Core Post Insulators is that they have a high level of resistance to UV light, which can cause premature degradation of many other types of electrical insulators. This makes our insulators particularly suitable for use in outdoor environments, where exposure to sunlight can be a significant factor affecting the performance of the insulation.

Our Solid Core Post Insulators are designed to be lightweight and easy to install. This makes them an ideal choice for use in areas with difficult terrain or difficult access, reducing installation times and costs.

Our Solid Core Post Insulators are manufactured to the highest standards and are compliant with international standards and regulations, ensuring that they can be used in a wide range of applications and countries around the world.

In conclusion, our Solid Core Post Insulators are an excellent choice for businesses looking for reliable and long-lasting electrical insulation solutions. With their unique geometric structure, high-quality materials, and superior electrical insulation properties, they provide a high level of performance, reliability, and safety that is essential to any electrical infrastructure. If you are looking for a high-quality, dependable insulator for your electrical systems, our Solid Core Post Insulators are the perfect choice.

Name: solid core post insulator

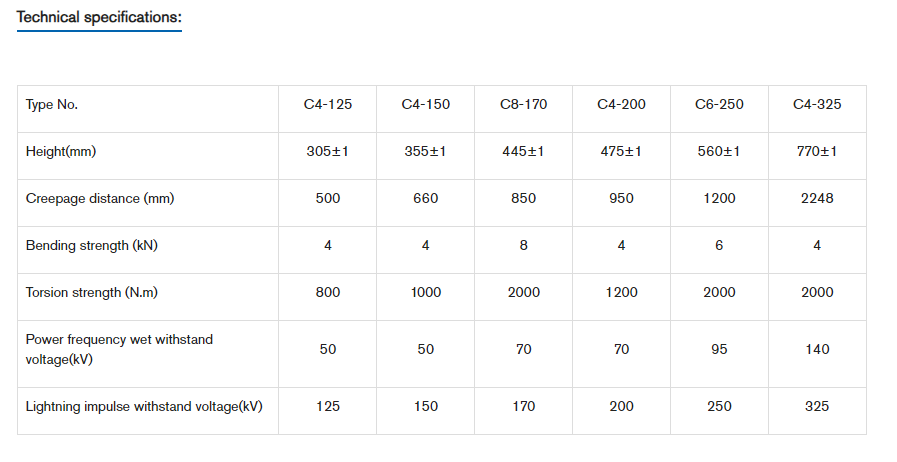

Type: C4-200 solid core post insulator
Related type: C4-125,C4-150,C8-170,C6-250
Voltage Range: 11kV~220kV
Standard: IEC60273
Graze colors of insulators: Brown or grey
Mechanical failing load: 4kN,6kN,8kN
Material: Alumina and silica porcelain
Application: Substation and switchgear

Dongfang manufactures solid core post insulator according to standard IEC60273 or special customer requirements can be supplied upon request.In standard IEC60273, creepage distances are standardized for post insulators in class I and II.
