WCST

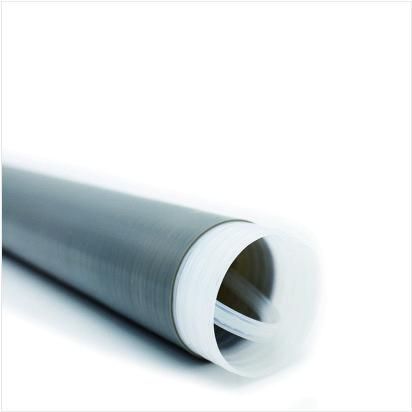

Cold Shrink Silicone Rubber Tube Manufactured from silicone rubber. Offering good mechanical, insulation and sealing protection. Accommodating a wide range of cable sizes. For indoor or outdoor applications. Simple and fast installation. Color：grey, black.

Description

Specification Table

Spec.	ID before shrunk φD/mm	After fully shrunk		Range/mm
Spec.	ID before shrunk φD/mm	Length/mm	Thickness/mm	Range/mm
WCST15	15±2	80~450	2.0±0.2	Φ6~Φ8
WCST20	20±2	80~450	2.0±0.2	Φ10~Φ14
WCST25	25±2	80~500	2.5±0.2	Φ12~Φ17
WCST32	32±2	80~490	2.5±0.2	Φ14~Φ21
WCST35	35±2	80~1000	2.0±0.2	Φ19~Φ28
WCST40	40±2	80~1000	2.0±0.2	Φ21~Φ31
WCST47	47±2	80~1000	2.0±0.2	Φ25~Φ37
WCST53	53±2	80~1000	2.0±0.2	Φ31~Φ45
WCST65	65±2	80~1000	3.0±0.2	Φ31~Φ50
WCST70	70±3	80~500	3.0±0.2	Φ37~Φ55
WCST80	80±3	80~500	3.0±0.2	Φ44~Φ65
WCST104	104±3	80~500	3.0±0.2	Φ51~Φ84
WCST120	120±3	80~420	3.0±0.2	Φ55~Φ100
